PINNACLE 100GigE Line Scan Cameras (LZ Series)

PINNACLE is Emergent’s ultra-high-speed 100GigE line scan camera family, built around the QSFP28 interface and designed for high-throughput line-scan inspection and capture systems. The series includes mono and trilinear models (e.g., LZ-16KG5 is mono/color and trilinear), as well as 256 TDI models that increase effective light collection for sharper imaging in low light and/or at high speeds.

PINNACLE supports GigE Vision 3.0 and RDMA/RoCEv2 workflows for low-latency, high-throughput streaming, and can be synchronized to 1 µs in multi-camera systems.

  • Resolution: 8K, 16K
  • Speed: 400-1000kHz
  • Chroma: Color, Mono (model dependent)
  • Sensors: Gpixel
  • Interface: 100GigE QSFP28
  • Warranty: 3 years

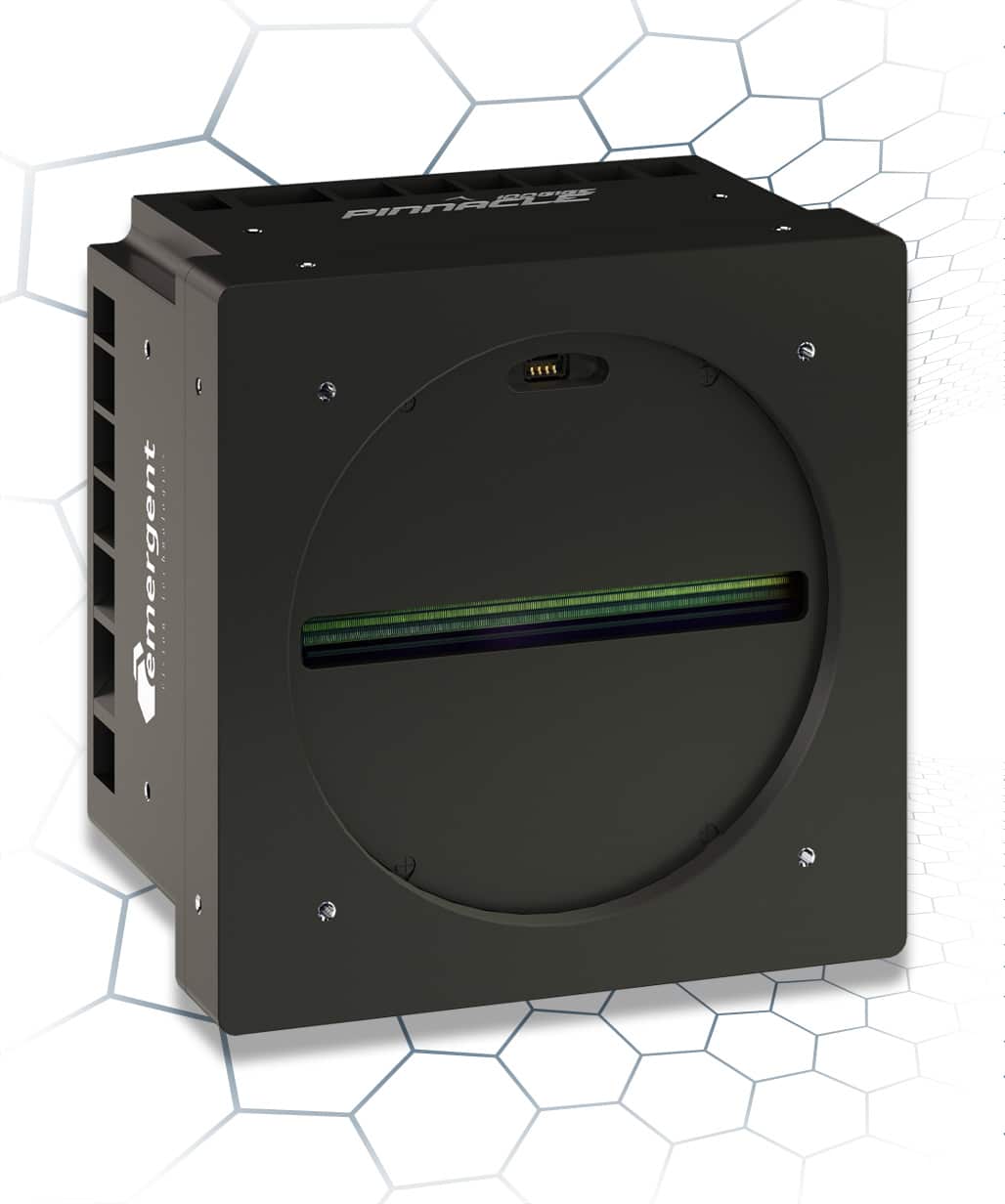

PINNACLE 100GigE Industrial Line Scan Cameras are the fastest available, with peak scanning rates of 1,000KHz and resolution up to 16K.
Model Chroma Resolution Line Rate Tri Rate Interface Sensor Name Pixel Size
LZT 8KG5 M 9K 256 TDI 100GigE QSFP28 Line Scan Camera LZT-8KG5-MNew Mono 8K 256 TDI 1000kHz – 100GigE QSFP28 Gpixel GLT5008BSI 5×5µm
TLZ 16KG5 C 16Kx16 100GigE QSFP28 Line Scan Camera LZT-16KG5-MNew Mono 16K 256 TDI 500kHz – 100GigE QSFP28 Gpixel GLT5016BSI 5×5µm
TLZ 16KG5 M 16Kx16 100GigE QSFP28 Line Scan Camera LZ-16KG5 Mono, Color 16Kx16 400kHz 133kHz 100GigE QSFP28 Gpixel GL5016 5×5µm

Build Complete GigE Camera Systems

eCapture Pro runs high-performance vision systems.

GUI-based machine vision software for 10, 25, and 100GigE camera systems, enabling rapid configuration, multi-camera control, and reliable high-speed image acquisition.

Build your own vision machine applications using eSDK Pro.

SDK for building vision applications with efficient capture, processing, transport, and storage, enabling seamless integration with third-party software and OEM systems.

Network Interface Cards (NICs)

Optimized NICs supporting zero-copy and GPUDirect transfer across 10, 25, and 100GigE systems, ensuring reliable high-throughput data streaming and multi-camera performance.

Accessories

Cables, switches, and lens adapters designed for complete system integration, supporting reliable connectivity, power delivery, and efficient deployment of machine vision systems.
